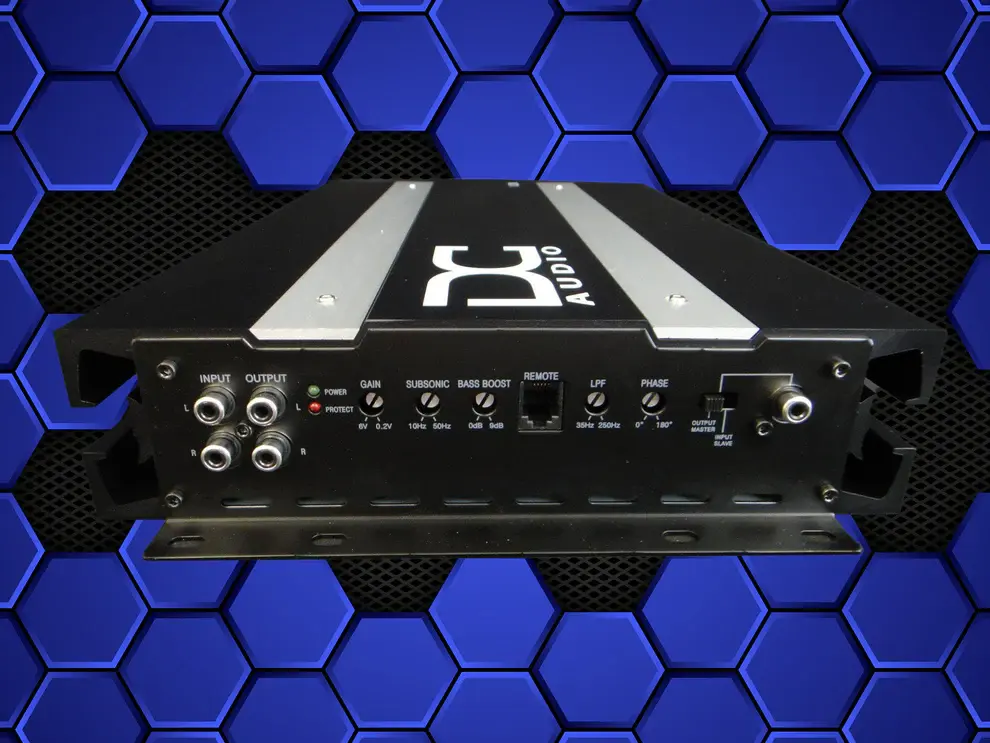

1.2k 1200 Watt Mono Block Amplifier
About the Product
DC 1.2k Amplifier
The 1.2kw competition series amplifier is a 1,200 watt rated mono block. It is capable of running up to 16 volts for up to 1500 watts. It is a linkable amp and designed to run a 1 ohm per amp or 2 ohms when strapped for up to 3000 watts from a pair.
Output Power (RMS):
4 ohm 350Wx1 @ 14.4 Volts
2 ohm 700Wx1 @ 14.4 Volts
1 ohm mono 1200x1 @ 14.4 Volts
1 ohm mono 1500x1 @ 16.0 Volts
Key Features:
1 ohm stable
Variable low pass filter
Variable subsonic filter
Variable bass boost
Wired Bass Knob remote control
RCA Pass Thru
Linkable
Full Specs:
DC Amp Model: | 1.2k |
Input Sensitivity | 6V~0.2V |
Frequency Response | 15Hz~270Hz |
24dB / Octave Crossover | YES |
Low Pass | 35Hz ~ 250Hz |
Subsonic Filter | 10Hz-50hz |
Remote Control | Yes |
Signal to Noise Ratio | dB100 |
Damping Factor | 100< |
THD @ 4ohms | Less than 0.1% |
Fuse Rating | External 120 amp |
LED Status Lights | Power and Protect |
Heatsink Length | 16.60"/419mm |
Heatsink Width | 9.38"/238mm |
Heatsink Height | 2.35"/59.6mm |
